GSR Embedded Single Board Computers are designed for industrial applications and include the latest generation Intel processors for Mini-ITX, mircroATX, ATX and Embedded SBCs platforms. All the boards are designed with a variety of I/O, low power, high performance and long term availability in mind. Single board computers can provide an excellent tool for a wide variety of applications including Digital Signage, POS, Machine Vision, Industrial Automation and Gaming.
| Product Name | Processor | Chipset | Expansion | Display | Storage | Features |
|---|---|---|---|---|---|---|

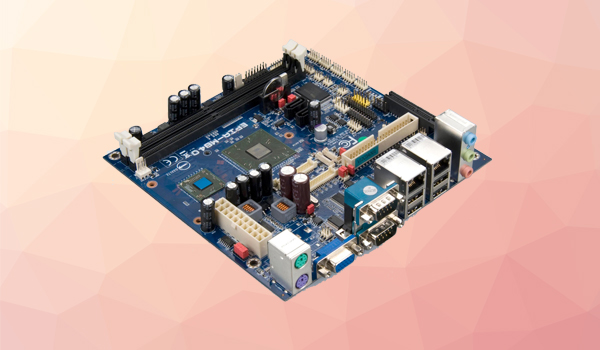

| Mini ITX - HU101/HU103 | 4th Gen Intel® Core™ | 1 PCIe x1, 1 Mini PCIe | 1 LVDS or 1 eDP, 2 HDMI | 3 SATA 3.0, RAID 0/1/5 | 2 LAN, 4 COM, 4 USB 3.0, 6 USB 2.0, 8-bit DIO, 12V DC-in (HU101) 19~24V DC-in (HU103) |
|
| Mini ITX - HM100 - HM86 | 4th Gen Intel® Core™ | Intel® HM86 | 1 PCIe x16, 1 Mini PCIe | 1 HDMI, 1 DP, 1 LVDS, 1 DVI-I | 2 SATA 3.0 | 2 LAN, 2 COM, 2 USB 3.0, 6 USB 2.0, 4-bit input and 4-bit output GPIO, 24-pin ATX |
| Mini ITX - HD100 - H81 | 4th Gen Intel® Core™ | Intel® HM81 | 1 PCIe x16, 1 Mini PCIe | 1 HDMI, 1 LVDS, 1 DVI-I | 2 SATA 3.0 | 2 LAN, 2 COM, 2 USB 3.0, 6 USB 2.0, 8-bit DIO, 24-pin ATX |
| Mini ITX - CR100-CRM | 3rd Gen Intel® Core™ 2nd Gen Intel® Core™ | Intel® QM77 | 1 PCIe x16, 1 Mini PCIe, 2 DFI Proprietary Extension Bus | 1 HDMI, 1 LVDS, 2 DVI-I (1 supports DVI-D signal) | 2 SATA 3.0, 2 SATA 2.0, RAID 0/1/5/10 | 2 LAN, 6 COM, 4 USB 3.0, 6 USB 2.0, 8-bit DIO, 24-pin ATX |
| Mini ITX - HR100-CRM | 3rd Gen Intel® Core™ 2nd Gen Intel® Core™ | Intel® QM67 | 1 PCIe x16, 2 DFI Proprietary Extension bus | 1 LVDS, 1 DVI-I (DVI-D signal), 1 VGA | 2 SATA 3.0, 2 SATA 2.0, RAID 0/1/5/10, 1 CompactFlash (optional) | 2 LAN, 6 COM, 8 USB 2.0, 8-bit DIO, 24-pin |
| Micro ATX - HD330 - Q87 | 4th Gen Intel® Core™ | Intel® Q87 | 1 PCIe x16, 1 PCIe x4, 1 Mini PCIe, 2 PCI | 1 HDMI, 1 DVI-I | 2 SATA 3.0, 1 SATA 2.0, RAID 0/1/5 | 2 LAN, 6 COM, 2 USB 3.0, 10 USB 2.0, 8-bit DIO, 1 Parallel, 24-pin ATX |
| Micro ATX - MB330 - CRM | 3rd Gen Intel® Core™ 2nd Gen Intel® Core™ | Intel® Q77 | 1 PCIe x16, 1 PCIe x4, 1 Mini PCIe, 2 PCI | 1 HDMI, 2 DVI-I (1 supports DVI-D signal) | 2 SATA 3.0, 4 SATA 2.0, 1 IDE, RAID 0/1/5/10 | 2 LAN, 6 COM, 4 USB 3.0, 6 USB 2.0, 8-bit DIO, 24-pin ATX |
| Micro ATX - MB331 - CRM | 3rd Gen Intel® Core™ 2nd Gen Intel® Core™ | Intel® Q77 | 1 PCIe x16, 1 PCIe x4, 2 PCI | 1 DVI-I, 1 VGA | 2 SATA 3.0, 4 SATA 2.0, 1 IDE, RAID 0/1/5/10 | 2 LAN, 6 COM, 4 USB 3.0, 6 USB 2.0, 8-bit DIO, 24-pin ATX |
| Micro ATX - SB330 - CRM | 3rd Gen Intel® Core™ 2nd Gen Intel® Core™ | Intel® Q67 | 1 PCIe x16, 1 PCIe x4, 2 PCI | 1 DVI-I (DVI-D signal), 1 VGA | 2 SATA 3.0, 4 SATA 2.0, 1 IDE, RAID 0/1/5/10 | 2 LAN, 6 COM, 12 USB 2.0, 8-bit DIO, 24-pin ATX |

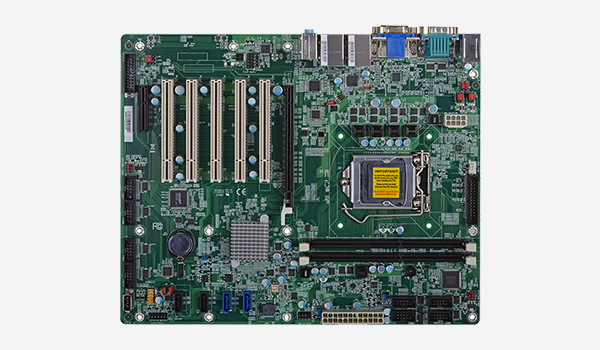

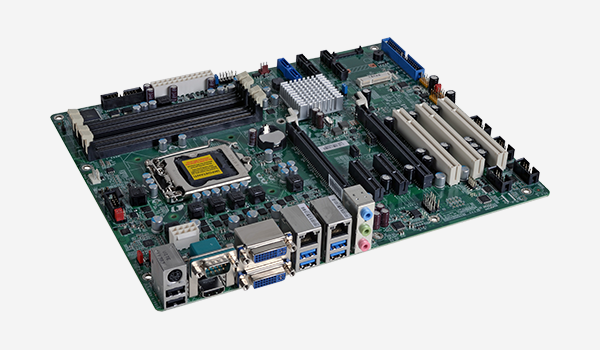

| ATX - HD631 -Q87 | 4th Gen Intel® Core™ | Intel® Q87 | 1 PCIe x16, 2 PCIe x4 (1 x4 and 1 x1 signal), 3 PCI | 1 HDMI, 1 DVI-I | 6 SATA 3.0, RAID 0/1/5/10 | 2 LAN, 6 COM, 4 USB 3.0, 6 USB 2.0, 8-bit DIO, 24-pin ATX |
| ATX - HD632 - H81 | 4th Gen Intel® Core™ | Intel® HM81 | 1 PCIe x16, 1 PCIe x4, 5 PCI | 1 DVI-I (DVI-D signal), 1 VGA | 2 SATA 3.0, 2 SATA 2.0 | 2 LAN, 10 COM, 2 USB 3.0, 7 USB 2.0, 8-bit DIO, 1 Parallel, 24-pin ATX |
| ATX - DL631 - C226 | 4th Gen Intel® Xeon® 4th Gen Intel® Core™ | Intel® C226 | 2 PCIe x16, 2 PCIe x4, 3 PCI | 1 HDMI, 1 DVI-I | 6 SATA 3.0, RAID 0/1/5/10 | 2 LAN, 6 COM, 4 USB 3.0, 6 USB 2.0, 8-bit DIO, 24-pin ATX |
| ATX - CL630 - CRM | 3rd Gen Intel® Xeon® 2nd Gen Intel® Xeon® 3rd Gen Intel® Core™ 2nd Gen Intel® Core | Intel® C216 | 2 PCIe x16, 2 PCIe x4, 3 PCI, 1 Mini PCIe | 1 HDMI, 1 DVI-I 1 DVI-D | 2 SATA 3.0, 4 SATA 2.0, 1 IDE, RAID 0/1/5/10 | 2 LAN, 6 COM, 4 USB 3.0, 8 USB 2.0, 8-bit DIO, 24-pin ATX |
| ATX - MB630 - CRM | 3rd Gen Intel® Core™ 2nd Gen Intel® Core™ | Intel® Q77 | 1 PCIe x16, 2 PCIe x4, 3 PCI, 1 Mini PCIe | 1 HDMI, 1 DVI-I | 2 SATA 3.0, 4 SATA 2.0, 1 IDE, RAID 0/1/5/10 | 2 LAN, 6 COM, 4 USB 3.0, 8 USB 2.0, 8-bit DIO, 24-pin ATX |
| ATX - SB630 - CRM | 3rd Gen Intel® Core™ 2nd Gen Intel® Core™ | Intel® Q67 | 1 PCIe x16, 1 PCIe x4, 1 PCIe x1 or 1 Mini PCIe, 4 PCI | 1 DVI-I (DVI-D signal), 1 VGA | 2 SATA 3.0, 4 SATA 2.0, 1 IDE, RAID 0/1/5/10 | 2 LAN, 6 COM, 12 USB 2.0, 8-bit DIO, 24-pin ATX |
