GSR Computer on Modules provide computing capability and cost efficiency in a compact size. Suitable for applications in medical, defence and retail, the COM series including COM Express Mini, Compact and Basic offer rich I/O and expandable flexibility incorporating the latest Intel Core, Intel Atom and AMD embedded processors.

Enquire About This Product

  • This field is for validation purposes and should be left unchanged.
Part NumberProcessorMemoryDisplayStorageCompliance
AL9A2Intel Atom® Processor E3900 Series, BGA 12964GB/8GB DDR3L Memory Down (ECC support only for 8GB)1 x DDI (HDMI/DVI/DP)
1 x LVDS/eDP
HDMI
DP++
eDP
2 x SATA 3.0 (up to 6Gb/s)PICMG COM Express® R2.1, Type 10
AL9A3Intel Atom® Processor E3900 Series, BGA 12964GB/8GB Memory Down Dual Channel DDR3L 1600MHz1 x DDI (HDMI/DVI/DP++)
1 x LVDS/eDP
LVDS
HDMI
2 x SATA 3.0 (up to 6Gb/s)PICMG COM Express® R2.1, Type 10
BT9A3Intel Atom® Processor E3800 Series, BGA 1170 2GB/4GB DDR3L 1333MHz ECC Memory Down Single Channel1 x DDI (HDMI/DVI/DP)
1 x LVDS
LVDS
HDMI/DVI
DP
2 x SATA 2.0PICMG COM Express® R2.1, Type 10

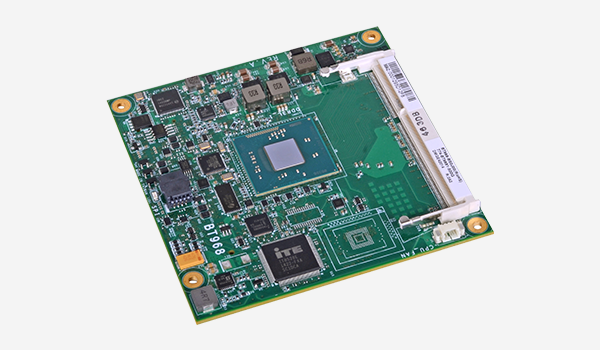

BT968Intel Atom® Processor E3800 Series, BGA 1170 Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1333MHz
1 x DDI (HDMI/DVI/DP)
1 x LVDS/DDI* (HDMI/DVI/DP)
1 x VGA
LVDS
HDMI/DVI
DP
VGA
2 x SATA 2.0PICMG COM Express® R2.1, Type 6
KU9687th Generation Intel® Core™ Processors, BGA 13564GB/8GB DDR4 Memory Down Dual Channel DDR4 2133MHz1 x VGA/DDI
1 x LVDS/eDP
1 x DDI
VGA
LVDS
eDP
HDMI
DP++
3 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10PICMG COM Express® R2.1, Type 6
AL968Intel Atom® Processor E3900 Series, BGA 1296Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1600MHz
1 x VGA/DDI
1 x LVDS/eDP
1 x DDI
VGA
LVDS
eDP
HDMI
DP++
VGA + LVDS + DDI
DDI + eDP + DDI
2 x SATA 3.0 (up to 6Gb/s)PICMG COM Express® R2.1, Type 6
BW968Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1600MHz1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
1 x DDI
VGA
LVDS
eDP
HDMI
DP
2 x SATA 3.0 (up to 6Gb/s)PICMG COM Express® R2.1, Type 6
SU9686th Generation Intel® Core™ Processors, BGA 1356Two 204-pin SODIMM up to 16GB Dual Channel DDR3L 1600MHz1 x VGA/DDI
1 x LVDS/eDP
1 x DDI
VGA
LVDS
HDMI
DP++
eDP
3 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10PICMG COM Express® R2.1, Type 6

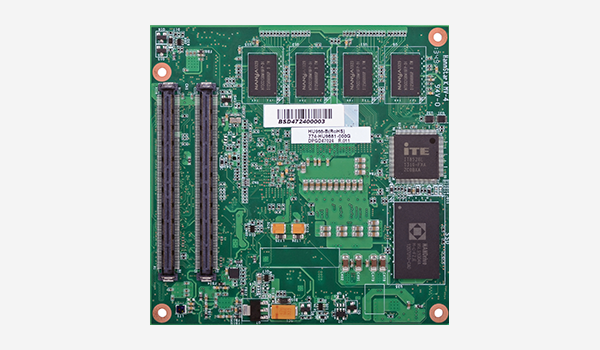

HU9684th generation Intel® Core™ processors, BGA 11682GB/4GB/8GB DDR3L Memory Down
Dual Channel DDR3L 1600MHz
1 x VGA
1 x LVDS
1 x DDI (HDMI/DVI/DP)
VGA
LVDS
HDMI/DVI
DP
3 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5PICMG COM Express® R2.1, Type 6
KB968AMD® Embedded G-Series SoC FT3 BGAOne 204-pin SODIMM up to 8GB
Dual Channel DDR3 1600MHz
1 x VGA
1 x LVDS/DP
1 x DP
VGA
LVDS
DP
2 x SATA 3.0 (up to 6Gb/s)PICMG COM Express® R2.1, Type 6
HR908-B3rd Generation Core™ processors (22nm process technology)One 204-pin SODIMM up to 8GB
Single Channel DDR3L 1600MHz
1 x VGA
1 x LVDS
3 x DDI (HDMI/DVI/DP)
VGA
LVDS
HDMI/DVI/DP
2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
2 x SATA 2.0 (up to 3Gb/s)
PICMG COM Express® R2.1, Type 6
CR908-B3rd Generation Intel® Core™ processors (22nm process technology)One 204-pin SODIMM up to 8GB
Single Channel DDR3L 1600MHz
1 x VGA
1 x LVDS
VGA
LVDS
HDMI/DVI/DP
2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
2 x SATA 2.0 (up to 3Gb/s)
PICMG COM Express® R2.1, Type 6
OT905-BAMD® Embedded G-Series
AMD® T56N, 1.65GHz, 2x 512KB L2, 18W TDP, dual-core
AMD® T40N, 1.0GHz, 2x 512KB L2, 9W TDP, dual-core
One 204-pin SODIMM up to 8GB
Single Channel DDR3 1333MHz
1 x VGA
1 x LVDS
VGA
LVDS
4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10PICMG COM Express® R2.0, Type 2
