High Brightness LCD Displays

High Brightness LCD Displays

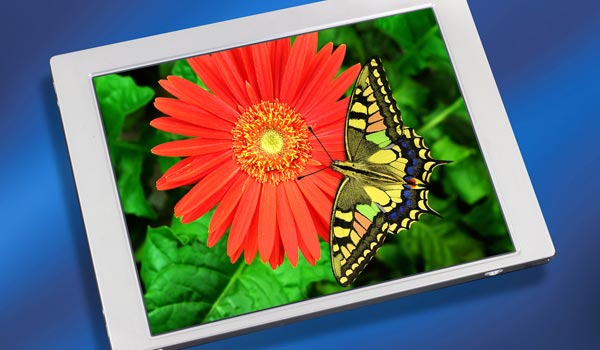

GSR Technology offers a full range of high brightness LCD displays from 3.5” up to 65” in size. Our high bright displays include TFT-LCD technology which helps produce sunlight readable modules by featuring brightness level up to 2500 nit. GSR’s high bright LCDs are essential for outdoor display applications and bright environments.



  • Screen sizes – 3.5” up to 65”
  • Brightness – 700 nit up to 2500 nit
  • Industrial grade LED backlights (analogue / PWM dimming control)
  • Extra wide viewing angles
  • Extra wide operating temperatures from -30C / +85C
  • Sunlight Readable
For sunlight readable displays GSR Technology’s TFT-LCD modules feature brightness up to 2500 nits, making them the ideal solution for outdoor applications. All sunlight readable LCD displays come in various formats such as:

  • TFT-LCD only
  • Kit form
  • Open frame
  • Fully housed
  • Waterproof chassis
  • Customised designs
GSR Technology’s sunlight readable displays are ideally suited to a number of applications including:

  • Bus/train stations
  • Marine
  • Airports
  • Information kiosks
  • Retail shop windows

We use TFT technology in our high brightness LCD displays and monitors in order to produce the clearest, sharpest picture for outdoor environments. TFT stands for thin-film-transistor and includes the use of an active matrix of pixels, meaning that TFT produces a faster response time. This is then applied to LCD displays in order to produce a clear, non-blurry image.

We have created an excellent guide on how TFT displays work and the main differences between TFT and LCD. To view, click here.

Display Specifications

GSR has a large range of high bright TFT-LCD monitors in a range of sizes from small scale modules up to industrial-sized display, as well as a variety of resolution options. View our datasheets below for display interface information and optical characteristics.

FormatModel NumberBrightness (nit)ResolutionInterfaceFeatures
3.5"(4:3)GSR03B1 V1 / V21000 / 450320x240Digital
4.3"(16:9)GSR04B1 V4 / V5 / V6 / V71000 / 800 / 500 / 400480x272Digitaloption: 4W touch
4.3"(16:9)GSR04B3 V11000480x272TTL
5.0"(16:9)GSR05B1 V1 / V2900 / 1500800x480TTL
5.0"(4:3)GSR05B2 V11000640x480Digital
5.6"(4:3)GSR06B1 V1 / V21000 / 450640x480Digital
5.7"(4:3)GSR06B2 V1 / V21200 / 550640x480Digital
6.5"(4:3)GSR06B41200640x480LVDSWide Temp
7"(16:10)GSR07B1 V1 / V21000 /500800x480DigitalWide Temp
7"(16:10)GSR07B1 VA / VB1000 /500800x480LVDSWide Temp
7"(16:10)GSR07B2 V1 / V21000 / 550800x480TTLSquare pixel
7"(16:10)GSR07B3 V1 / V21000 / 500800x480Digital
7"(16:10)GSR07B3 VA / VB1000 / 500800x480LVDSdriver built-in
7"(16:10)GSR07B5 V410001024x6001-c LVDSWSVGA
8"(16:10)GSR08B4 V11000800x480DigitalWide Temp
8"(4:3)GSR08B1 V6 / V7 / V8500 / 1000 / 1000800x600DigitalSVGA
8"(4:3)GSR08B1 V6B / V7B / V8B500 / 1000 / 1000800x600LVDSSVGA, built-in driver
8"(4:3)GSR08B1 V8A1000Wide View angle
8"(4:3)GSR08B6 V16001024x768LVDSXGA
8.4"(4:3)GSR08B2 V2 / V31000 / 1600800x6001-c LVDSWide Temp / LVDS
8.4"(4:3)GSR08B7 V1 / V21000 / 1600800x6001-c LVDSLVDS
8.4"(4:3)GSR08B3 V1 / V3850 / 450800x600DigitalLVDS
8.4"(4:3)GSR08B5 V11000800x6001-c LVDS
10.1"(16:9)GSR10B3 V1 / V2650 / 10001366x7681-c LVDS
10.1"(16:9)GSR10B3 V37001280x800LVDS2.8mm thickness,
10.1"(16:9)GSR10B3 V56501366x768
10.1"(16:9)GSR10B3 V910001280 x 800LVDSWide Temp, option: p-cap touch
10.1"(16:9)GSR10B8 V110001024 x 600Wide Temp, option: p-cap touch
10.1"(16:9)GSR10B8 V210001024 x 600option: p-cap touch
10.2"(16:9)GSR10B2 V1850800x480DigitalWide Temp
10.4"(4:3)GSR10B1 V1  / V4850 / 1000800x600Digital
10.4"(4:3)GSR10B4 V1 / V21000 / 370800x6001-c LVDS
10.4"(4:3)GSR10B5 V11000800x6001-c LVDS
10.4"(4:3)GSR10B6  V211001024x7681-c LVDSWide Temp, Wide view angle
10.4"(4:3)GSR10B7 V1 / V2 / V31200 / 550 / 700800x6001-c LVDSWide Temp
12.1"(4:3)GSR12B1 V2 V31000 / 1600800x6001-c LVDSWide Temp
12.1"(4:3)GSR12B1 V41000Wide Temp, Wide view angle
12.1"(4:3)GSR12B2 V2 / V31000 / 16001024x7681-c LVDSWide Temp, Wide view angle.,XGA
12.1"(4:3)GSR12B3 V3A/ / V3B 1000 / 16001024x7681-c LVDSWide Temp, Wide view angle, XGA
12.1"(4:3)GSR12B3 V4A / /V4B1000  /  15001024x7681-c LVDS
12.1"(4:3)GSR12B4 V1 / V21200 / 5001024x7681-c LVDS
12.1"GSR12B5 V110001280x8001-c LVDSWide Temp
15"(4:3)GSR15B2 V5 10001024x7681-c LVDSWide Temp,
15"(4:3)GSR15B2 V625001024x7681-c LVDS
15"(4:3)GSR15B2 V715001024x7681-c LVDS
15"(4:3)GSR15B3 V4 / V51000 / 15001024*7681-c LVDS
15"(4:3)GSR15B6 V2 / V3800 / 15001024*7681-c LVDS
15.6"(16:9)GSR15B1 V2 8001920 x 1080eDP
15.6"(16:9)GSR15B4 V1 / V2 / V31000 / 1500 / 5001366x7681-c LVDS
17"(5:4)GSR17B1 V6 / V7 / V8750 / 1500 / 10001280x10242-c LVDS
17"(5:4)GSR17B4 V1 / V3750 / 15001280x10242-c LVDSWide Temp
18.5"(16:9)GSR19B1 V1 10001366x7681-c LVDS
18.5"(16:9)GSR19B1 V215001366x7681-c LVDS
18.5"(16:9)GSR19B1 V412001366x7681-c LVDS
18.5"(16:9)GSR19B1 V6 / V7 / V8800 / 450 1366x7681-c LVDS
18.5"(16:9)GSR19B7 V1 / V2 / V31500 / 700 / 4501366x7681-c LVDS
19"(16:10)GSR19B2 V1 / V21000 / 15001440x9002-c LVDS
19"(16:10)GSR19B5 V2 / V4750  / 10001440x9002-c LVDS
19"(5:4)GSR19B3 V2 / V31000 / 15001280x10242-c LVDSoption: p-cap or 5W touch
19"(5:4)GSR19B6 V1 / V2 / V31000 / 500 / 15001280x10242-c LVDS
19"(5:4)GSR19B8 V1 / V3750 / 15001280x10242-c LVDSWide Temp
19"(5:4)GSR19BA V110001280x10242-c LVDSWide View angle
21.5"(16:9)GSR22B3 V412001920x10802-c LVDSoption:p-cap touch
21.5"(16:9)GSR22B3 VA25001920x10802-c LVDS
21.5"(16:9)GSR22B3 VB15001920x10802-c LVDS
21.5"(16:9)GSR22B2 V3 / V4700 / 10001920x10802-c LVDSWide View angle
23.8"(16:9)GSR24B3 V1 / V21000 / 5001920x10802-c LVDSWide View angle
27"(16:9)GSR27B1 V1 / V21000 / 5001920x10802-c LVDSWide View angle
31.5"(16:9)GSR32B5 V125001920x10802-c LVDSDirect backlight
31.5"(16:9)GSR32B5 V210001920x10802-c LVDSDirect backlight
31.5"(16:9)GSR32B5 V315001920x10802-c LVDSDirect backlight
31.5"(16:9)GSR32B5 V44001920x10802-c LVDSDirect backlight
42"(16:9)GSR42B2 V115001920x10802-c LVDS
42"(16:9)GSR42B2 V525001920x10802-c LVDS
42"(16:9)GSR42B4 V125001920x10802-c LVDS5.9mm super slim bezel
42"(16:9)GSR42B4 V215001920x10802-c LVDS5.9mm super slim bezel
42"(16:9)GSR42B4 V37001920x10802-c LVDS5.9mm super slim bezel
46"(16:9)GSR46B1 V115001920x10802-c LVDS
46"(16:9)GSR46B2 V115001920x10802-c LVDS
46"(16:9)GSR46B2 V225001920x10802-c LVDS
55"(16:9)GSR55B3 V125001920x10804-c LVDSSpecial 5.9mm super slim bezel
55"(16:9)GSR55B3 V215001920x10804-c LVDSSpecial  5.9mm super slim bezel
55"(16:9)GSR55B3 V37001920x1084-c LVDSSpecial 5.9mm super slim bezel
65"(16:9)GSR65B1 V1 / V21500 /20001920x10804-c LVDS
65"(16:9)GSR65B2 V1 / V2 / V3 1500 / 2000 / 2500    1920x1080 4-c LVDS
