Industrial TFT Monitors

Industrial TFT Monitors

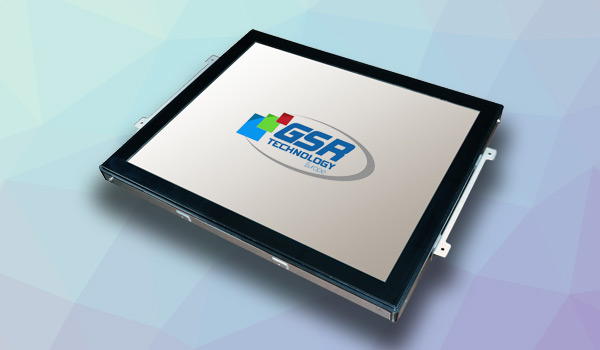

GSR Technology Industrial chassis TFT monitors are fully enclosed and configured display solutions for gaming, POS, retail, Information kiosks, control room and many other industrial type applications. Optional interface including VGA, DVI and HDMI and standard VESA mounting holes allow flexibility in product design.

Sizes start from 3.5” upto 65” and all include state-of-the-art LED backlight to support low power consumption and ensuring high quality / design.

All sizes come with a standard chassis frame. For custom projects please speak to the GSR sales team.

Enquire About This Product

  • This field is for validation purposes and should be left unchanged.
SizeResolutionPart NumberBrightnessInput signalMonitor Dimensions
7"800x600@60HzP070CRDW250 nits15pin D-SUB, DVI (option->Display port, HDMI, composite)193mm x 145mm x 38mm
8.4"800x600@60HzP084CRDW250 nits15pin D-SUB, DVI (option->Display port, HDMI, composite)230mm x 183mm x 35mm
10.4"1024 x 768@60HzP104CRDW230nits15pin D-SUB, DVI (option->Display port, HDMI, composite)265mm x 197mm x 42mm
12.1"1024 x 768@60HzP121CRDW500nits15pin D-SUB, DVI (option->Display port, HDMI, composite)300mm x 239mm x 41mm
15"1024 x 768@60HzP150CRDW250nits15pin D-SUB, DVI (option->Display port, HDMI, composite)350mm x 274mm x 42mm
15.6"1366 x 768@60HzP156CRDW250nits15pin D-SUB, DVI (option->Display port, HDMI, composite)380mm x 233mm x 45mm
17"1280x1024@60HzP170CRDW250nits15pin D-SUB, DVI (option->Display port, HDMI, composite)380mm x 312mm x 46mm
17.3"1920x1080@60HzP173CRDW400nits15pin D-SUB, DVI (option->Display port, HDMI, composite)425mm x 259mm x 50mm
18.5"1366x768@60HzP185CRDW250nits15pin D-SUB, DVI (option->Display port, HDMI, composite)458mm x 279mm x 46mm
19"1280x1024@60HzP190CRDW250nits15pin D-SUB, DVI (option->Display port, HDMI, composite)425mm x 350mm x 47mm
21.5"1920x1080@60HzP215CRDW250nits15pin D-SUB, DVI (option->Display port, HDMI, composite)519mm x 323mm x 47mm
24.0"1920x1080@60HzP240CRDW250nits15pin D-SUB, DVI (option->Display port, HDMI, composite)572.5mm x 337mm x 48mm
27.0"1920x1080@60HzP270CRDW300nits15pin D-SUB, DVI (option->Display port, HDMI, composite)650.0mm x 388.0mm x 50.5mm
32.0"1920x1080@60HzP320CRDW500nits15pin D-SUB, DVI (option->Display port, HDMI, composite)808.0mm x 498.0mm x 73.0mm
42.0"1920x1080@60HzP420CRDW500nits15pin D-SUB, DVI (option->Display port, HDMI, composite)981.0mm x 572.0mm x 92.0mm
46.0"1920x1080@60HzP460CRDW700nits15pin D-SUB, DVI (option->Display port, HDMI, composite)1062.4mm x 619.0mm x 88.5mm
55.0"1920x1080@60HzP550CRDW500nits15pin D-SUB, DVI (option->Display port, HDMI, composite)1260.5mm x 683.6mm x 104.5mm
